This TSMC 12nm 2.5V ESD Power Clamp IP macro provides compact, low-leakage ESD protection for FinFET designs. It is designed in TSMC 12nm and can be ported to other technologies upon request using Sofics in-house design tool flow.
Sofics Datasheet – [DS-TS12N-2V5-PC-ESD]
Key Highlights
- Silicon-proven ESD protection for FinFET technologies
- High robustness against HBM, CDM, latch-up and system-level stress conditions
- Low parasitic capacitance
- Compact layout footprint compared to conventional foundry ESD solutions
- Customizable trigger, holding voltage, leakage and clamp configuration
- Modular design enables fast and reliable turnaround and low NRE
Details
| Parameter | Value |
|---|---|
| VDD | 2.5V ±10% |
| Temperature Tj | -40C to 125C |
Key Features
| Parameter | Value |
|---|---|
| TLP | 2.33A |
| HBM | ±3.5kV |
| Leakage | 8nA @ 25C 800nA @ 125C |
Area
| Type | Size [μm²] |
|---|---|
| Power | 2303 |
Summary
The TSMC 12nm 2.5V ESD Power Clamp provides robust on-chip protection for sensitive supply and interface pins while minimizing impact on signal performance, leakage, and silicon area. The solution can be adapted to specific interface requirements, voltage domains, ESD robustness targets, and foundry design rules.
The protection concept supports reliable operation under HBM and CDM stress conditions and can be customized for higher robustness levels, low-capacitance interfaces, low-leakage applications, or reduced-area.

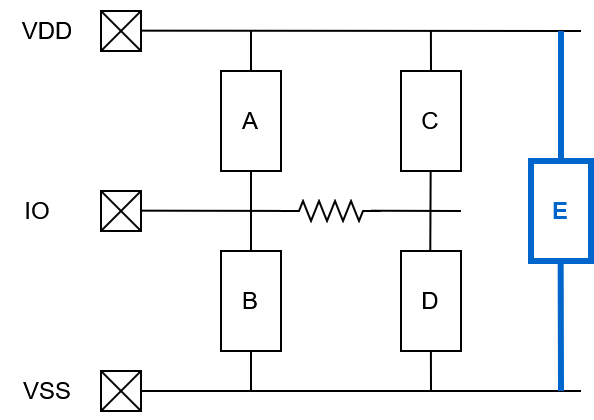

Pin Schematic
Features
- Power protection for supply / analog / RF / high-voltage pins
- Supports HBM and CDM robustness targets
- Optional support for IEC / EOS / EMC
- Low-capacitance implementation
- Low-leakage options available
- Compact ESD clamp layout
- Compatible with foundry or custom pad ring integration
Sofics offers a broad portfolio of configurable specialty I/Os and ESD protection enabling flexible integration across multiple voltage domains and applications. Explore our ESD and specialty I/O solutions for TSMC and low-leakage ESD solutions. Additional variants and features can be supported upon request, allowing fast customization through minimal design changes. For more information, visit www.sofics.com or contact us at bd@sofics.com.
